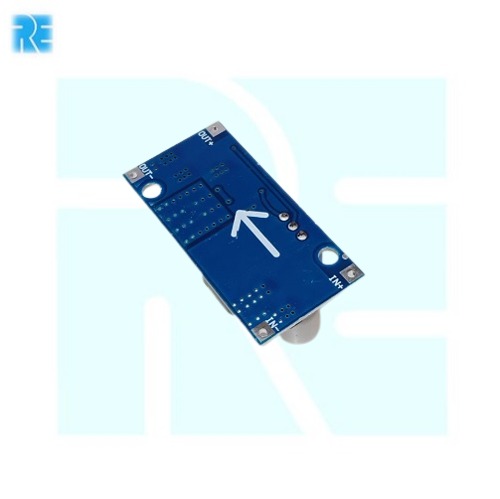

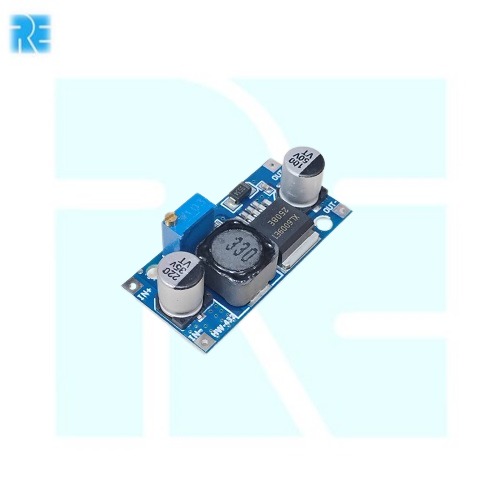

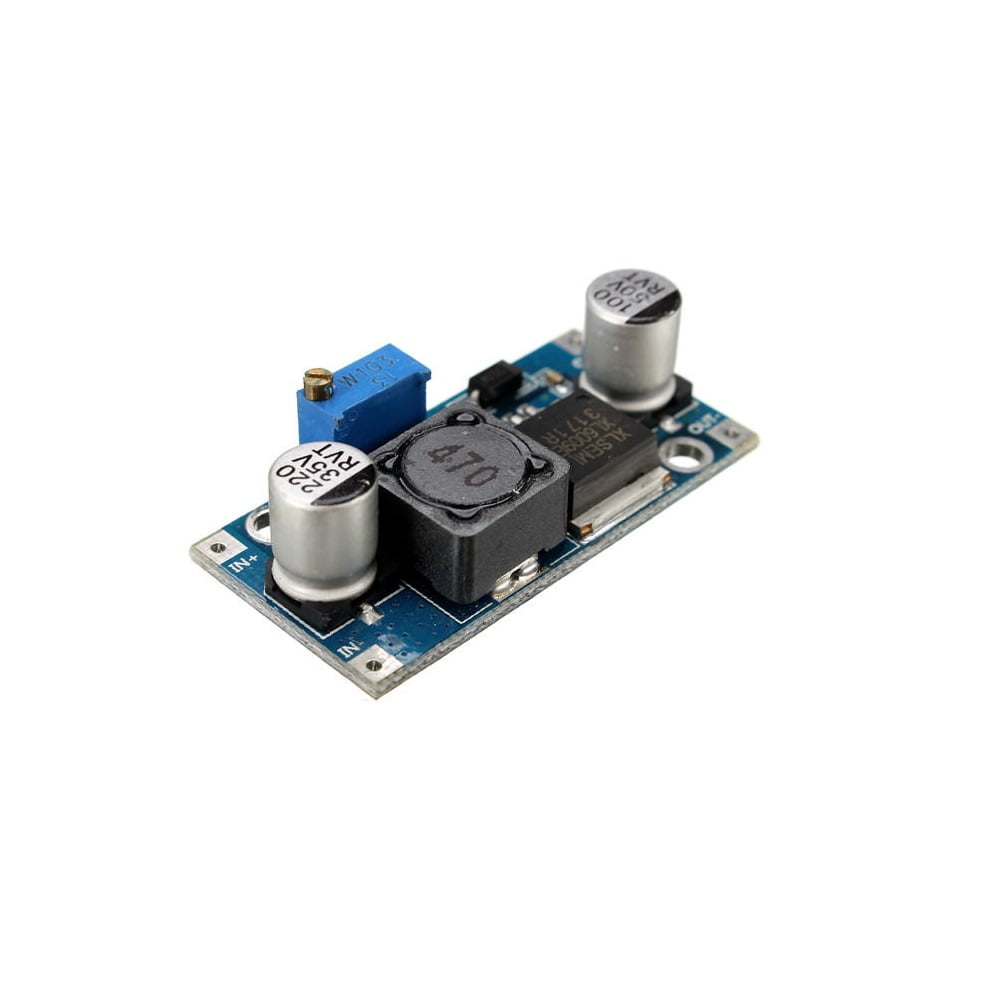

XL6009 DC-DC Step-Up Converter Module (3V-32V to Adjustable 35V 4A Boost Converter)

The XL6009 DC-DC Step-Up Converter Module is a high-efficiency boost power supply designed to convert lower DC input voltages into higher adjustable DC output voltages. Based on the XL6009 switching regulator IC, this module provides stable voltage conversion with high efficiency and low heat generation. It is suitable for battery-powered systems, LED drivers, embedded electronics, solar power applications, and DIY projects requiring a regulated higher voltage from a lower voltage source.

Key Features -

• Based on the XL6009 high-efficiency boost converter IC

• Wide input voltage range from 3V to 32V DC

• Adjustable output voltage up to 35V DC

• High conversion efficiency for reduced power loss

• Supports output currents up to 4A (model dependent)

• High-frequency switching for compact and efficient operation

• Built-in thermal and overload protection

• Compact PCB design for easy installation

• Suitable for battery-powered and embedded systems

• Ideal for power supply, LED, and voltage boost applications

Specifications -

• Product type - DC-DC Step-Up (Boost) Converter Module

• Main IC / Chipset - XL6009

• Input voltage - 3V to 32V DC

• Output voltage - Adjustable up to 35V DC

• Maximum output current - Up to 4A (Model dependent)

• Switching frequency - High-frequency switching (Typical)

• Efficiency - High conversion efficiency

• Package / Mounting type - PCB Module with Through-Hole Connections

• Operating temperature - Standard electronics operating range

• Additional features - Adjustable output, thermal protection, overload protection

Applications -

• Battery-powered electronic devices

• LED driver power supplies

• Solar power systems

• Embedded and microcontroller projects

• DIY regulated power supplies

• Automotive voltage boosting applications

• Portable electronic equipment

• Industrial and laboratory prototyping
