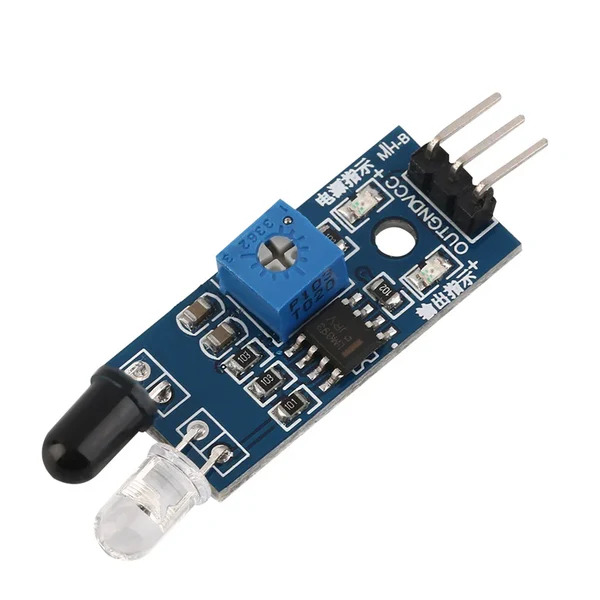

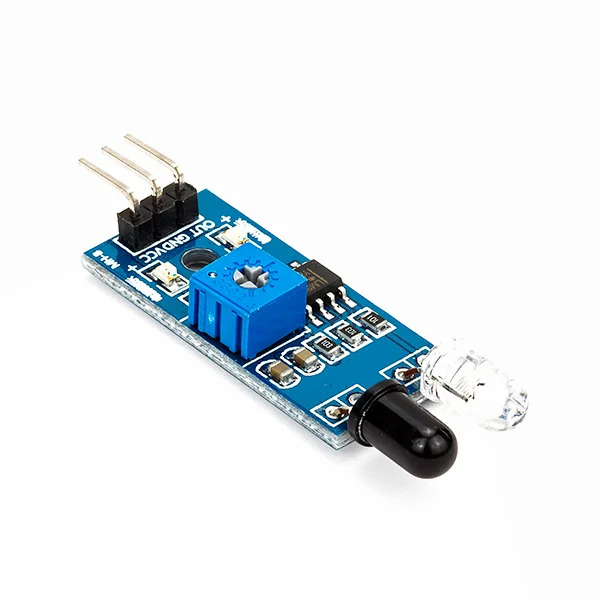

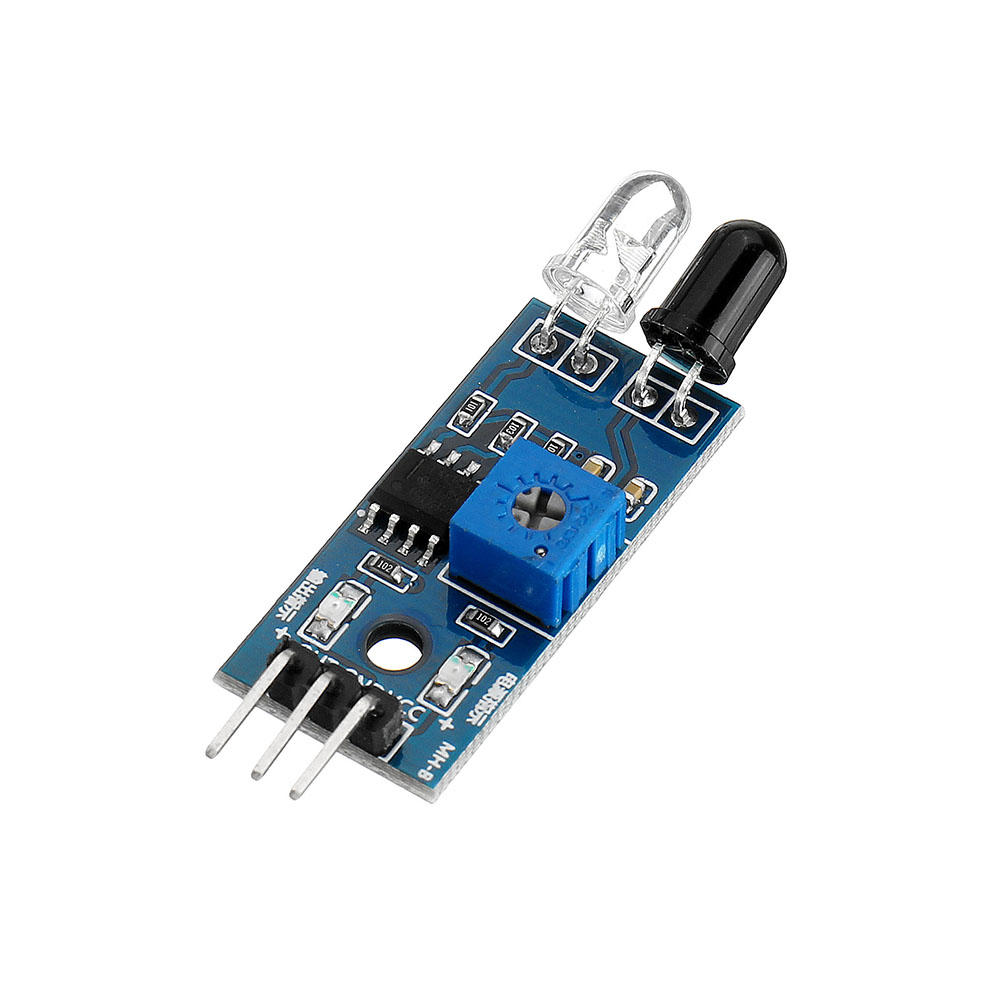

IR Sensor Proximity Detection Module

The IR sensor proximity detection module is designed to detect nearby objects using infrared reflection technology. It emits infrared light and detects the reflected signal from objects allowing the module to determine the presence of obstacles within a short detection range.

This module is widely used in robotics automation systems obstacle detection and object sensing applications. It provides a digital output signal when an object is detected and includes an adjustable sensitivity control for setting the detection distance. The compact design allows easy integration with microcontrollers and embedded electronics projects.

Key Features

• Infrared based proximity detection
• Detects objects using reflected IR signal
• Adjustable detection distance using onboard potentiometer
• Digital output for object detection signal
• Suitable for robotics and automation projects
• Compatible with Arduino ESP32 Raspberry Pi systems
• Compact module suitable for prototyping and PCB integration

Specifications

• Product Type = Infrared proximity sensor module
• Detection Method = Infrared reflection
• Operating Voltage = 3.3V to 5V
• Output Type = Digital output
• Detection Distance = Adjustable short range
• Indicator = Onboard detection indicator LED
• Interface Type = 3 Pin module interface
• Application = Obstacle detection and proximity sensing

Interfaces

• VCC = Power supply input
• GND = Ground
• OUT = Digital detection output signal
