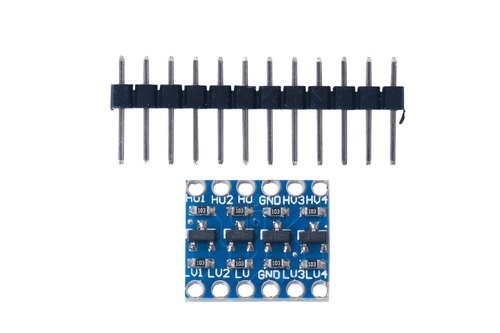

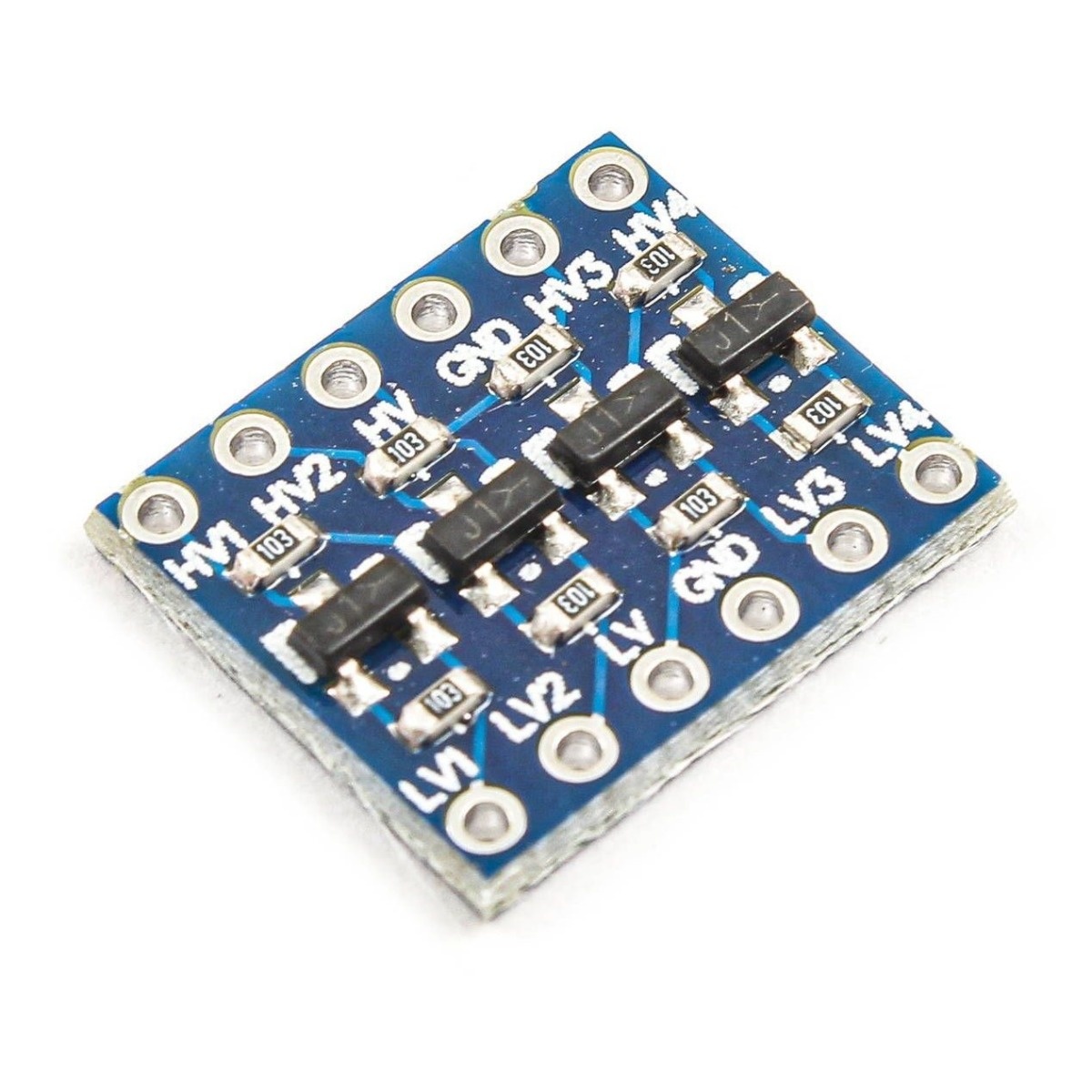

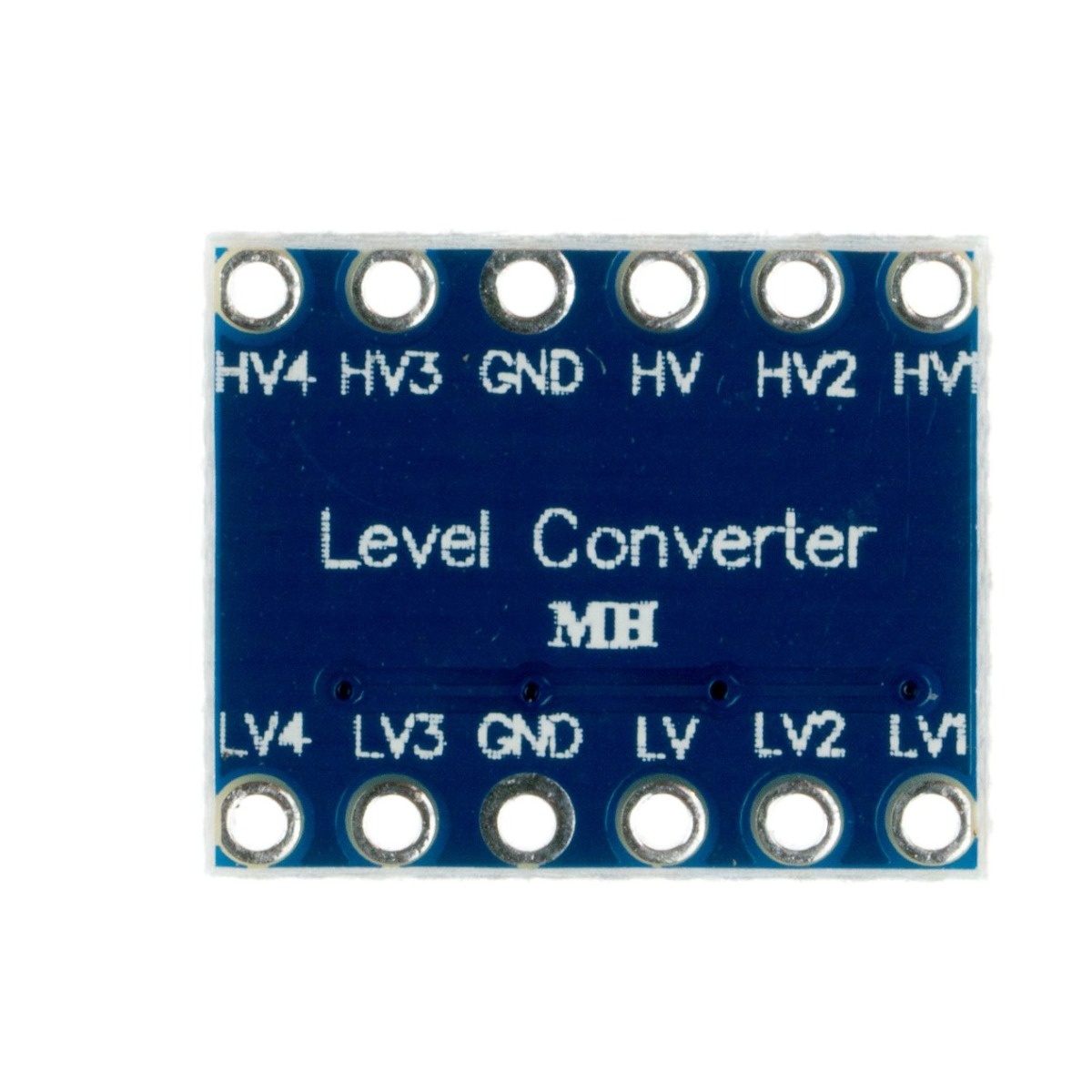

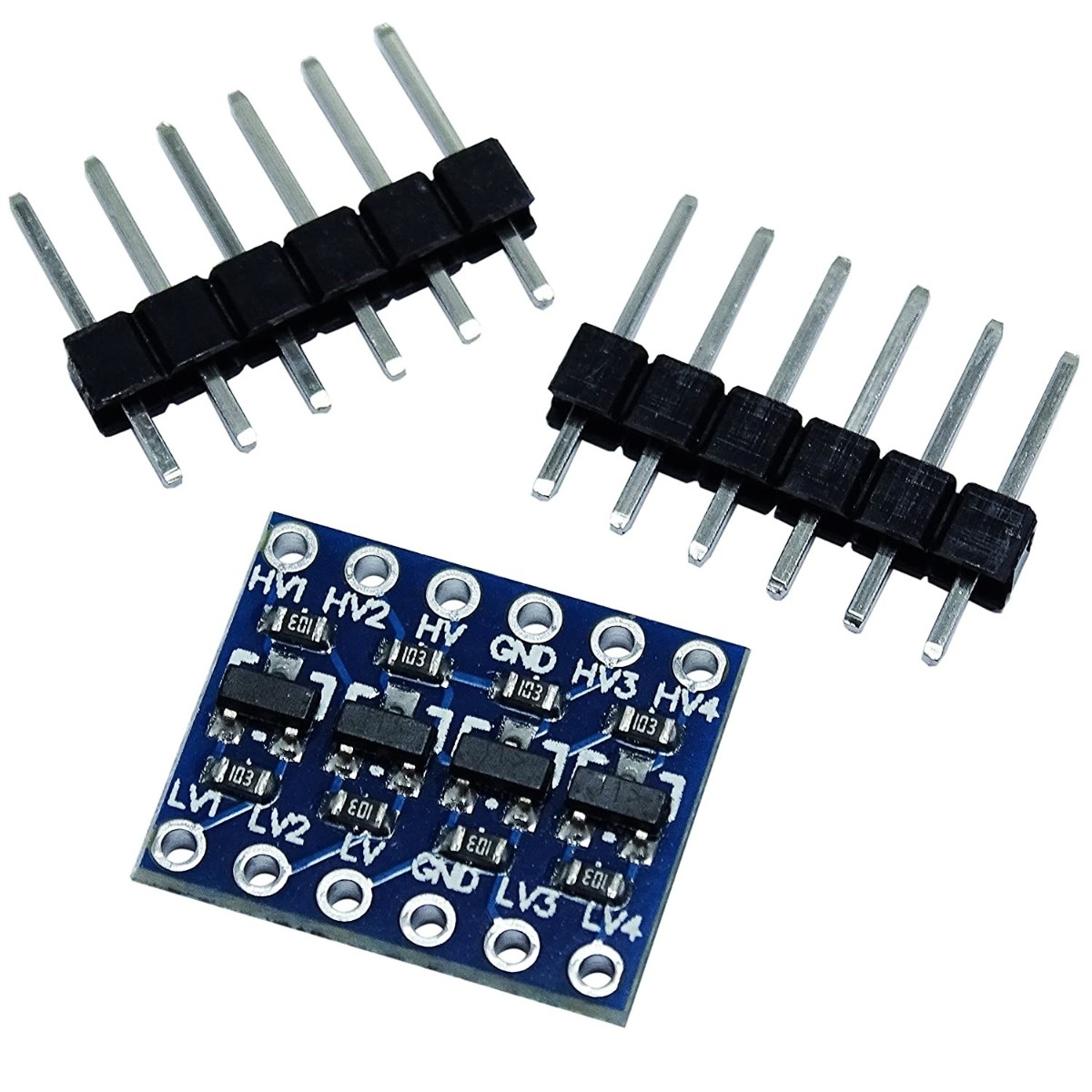

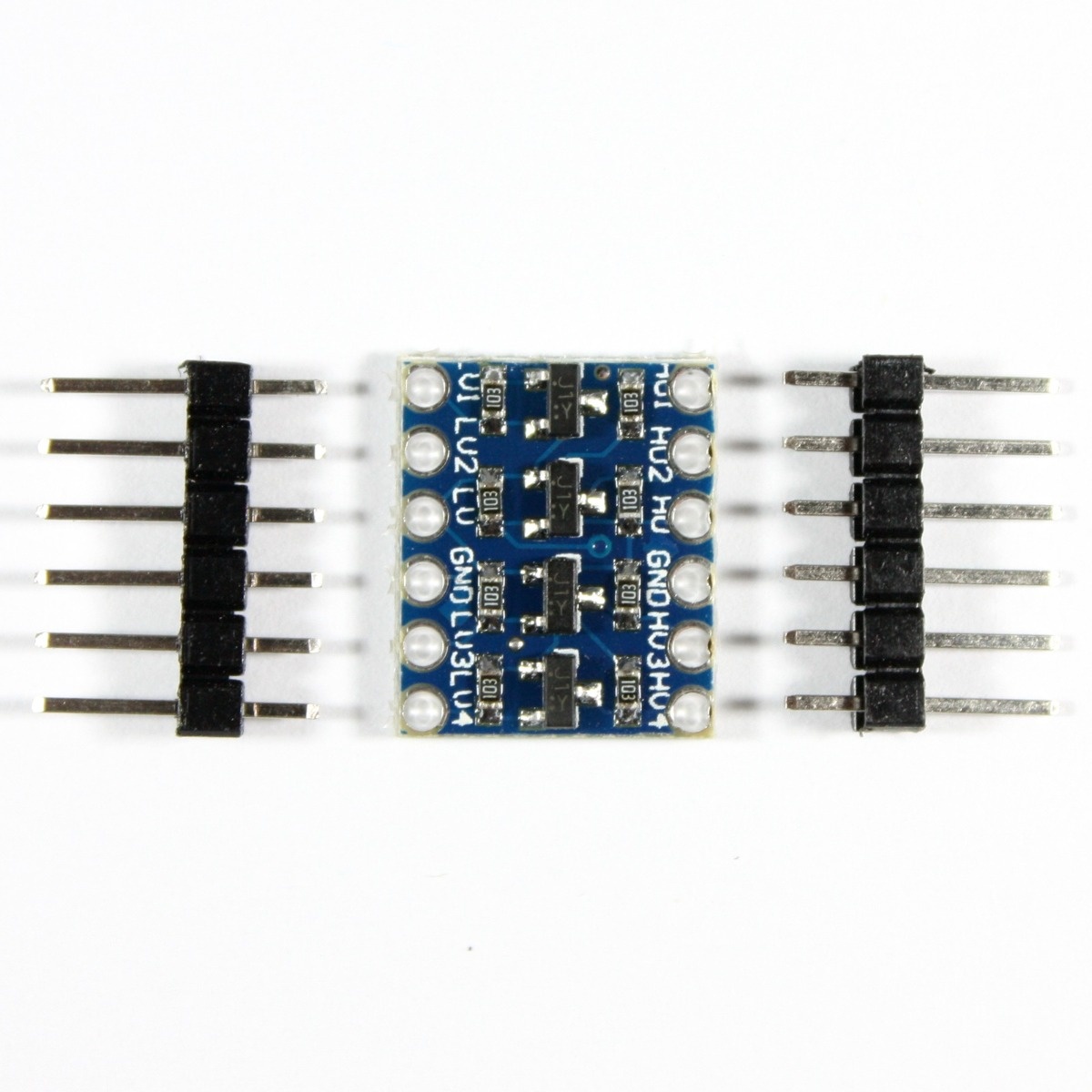

I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter (4 Channel Logic Level Shifter Module)

The I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter is a compact voltage level shifting module designed to safely interface devices operating at different logic voltages. It provides four independent bidirectional channels that automatically translate logic signals between low-voltage and high-voltage systems without requiring direction control. Commonly used for I2C communication, the module is also suitable for UART, SPI, GPIO, 1-Wire, and other digital interfaces. It is compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other 3.3V or 5V development platforms.

Key Features -

• Four independent bidirectional logic level channels

• Supports 3.3V to 5V logic conversion

• Automatic bidirectional signal detection

• Ideal for I2C communication

• Compatible with UART, SPI and GPIO signals

• Supports 1.8V to 5V logic systems

• Compact PCB module

• Easy header pin connections

• Stable and reliable signal conversion

• Suitable for embedded development

Specifications -

• Product type - Logic Level Converter Module

• Number of channels - 4

• Conversion type - Bidirectional

• Low voltage side - 1.8V to 3.3V DC

• High voltage side - 3.3V to 5V DC

• Communication support - I2C, UART, SPI, GPIO and 1-Wire

• Logic level - TTL Compatible

• Automatic direction detection - Supported

• Mounting type - PCB Module

• Operating temperature - 0C to 70C

Applications -

• I2C communication

• UART level shifting

• SPI interface conversion

• ESP32 and ESP8266 interfacing

• Raspberry Pi projects

• Arduino projects

• Embedded systems

• DIY electronics projects
